Explosion-proof gas alarm devices can be used in industrial kitchens, boiler rooms, central system rooms, gas stations, and LPG tank rooms. It is a professional gas alarm device produced in accordance with TSE standards and certified with TSE and CE approvals. You can purchase the product suitable for your request (220V Output or Dry Contact Output) from our website. For bulk purchases, you can contact us to benefit from discounted prices.

What is the function of the ASENS Explosion-Proof Industrial Kitchen Gas Alarm Device?

1st Section (Function)
The function section, where the device provides visual and audible warnings, contains an electronic circuit board. The electronic board, housed in a plastic box with an IPX2D protection class, is safeguarded using this method. This device, certified with TSE EN 50194-1 and CE, should be placed in a safe zone outside the explosion area.

2nd Section (Detection)

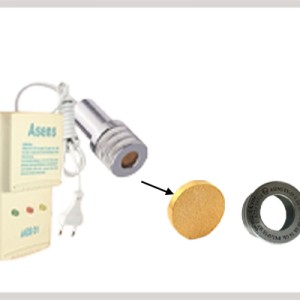

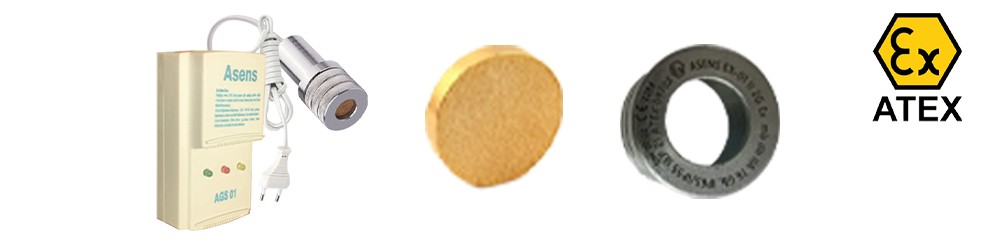

This section, located in the hazardous environment, consists of two main materials. It is composed of a protective gland made of solid aluminum and a gas sensor capable of detecting hazardous gases. The sensor is placed inside the protective gland with a plastic socket. The function section is linked via a cable connected to the necessary connection points. Unauthorized interference with the gland is prevented.

EX PROOF GAS ALARM DEVICE:

• Operating Voltage: Input; 230VAC 50Hz
• Output Voltage: Dry Contact NC/C/NO
• Power Consumption (Standby): 2.5 W
• Sensor: Semiconductor
• Calibration Time: 20 - 60 sec
• Buzzer Sound Output: 85 dB
• Sensor Measurement Standard: TSE EN 50194-1
• Sensor and Device Lifespan: 5 Years
• Alarm Level: Methane (Natural Gas) 7% LEL (±0.4% LEL) GaSis-Methane Lower Explosion Limit.
• Operating Temperature: -20°C to 50°C
• Protection Rating: IPX2D
• Dimensions: 68mm x 112mm x 38mm
• Weight: 500g
